Specification：

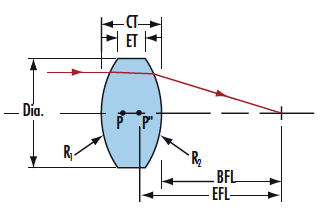

Double-Convex (DCX) Lenses have two outward curved surfaces, a positive focal length and are useful for 1:1 imaging and in multi-element systems.
Material:Optical glass, Fused Silica,Sapphire,Borofloat 33,Float glass,CaF2,ZnSe,Si,ZnS...
Diameter:0.5-500mm
Diameter Tolerance:+0/-0.01~+0/-0.1mm
Thickness Tolerance:±0.01~±0.1mm
Focal Length Tolerance (%):±1%
Irregularity (P-V) @ 632.8nm:λ/10~λ/2@632.8nm
Surface Quality:10/5~60/40
Centration:<30”~3'
Clear Aperture:>90%
Bevel:Protective bevel as needed
Coating:Uncoated,AR,BBAR
