Specification：

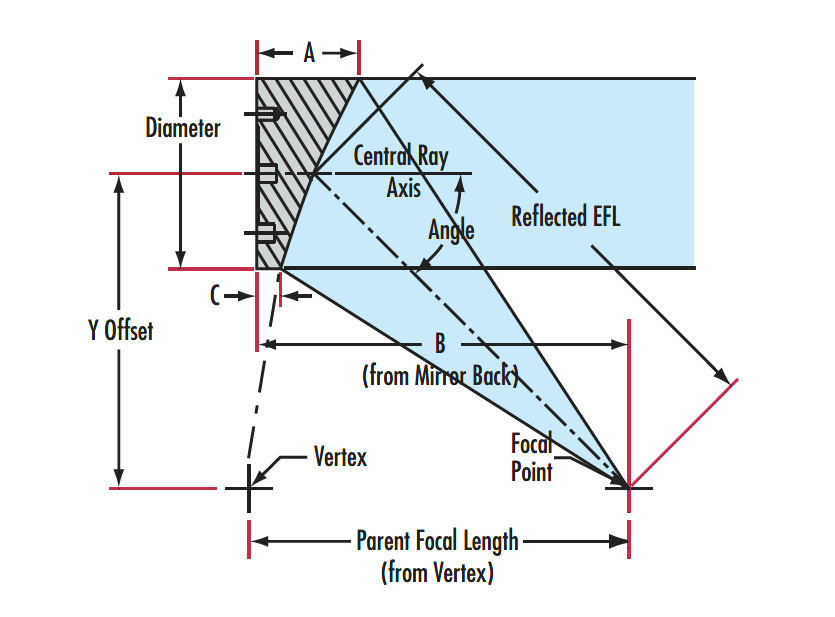

Off-Axis Parabolic Mirrors (OAPs) are designed to direct and focus incident collimated light at a specific offset angle with minimal scatter loss. Coated with protected Aluminum ,Silver,Gold， these OAP mirrors provide high reflectivity from the visible to the infrared (IR), making them ideal for broadband applications. These OAPs provide unobstructed access to the point of focus, allowing for the creation of more compact systems.Off-Axis Parabolic Mirrors (OAPs) are commonly used in instrumentation and laser systems in the visible and IR spectrum, including Schlieren, MTF, FLIR, and FTIR systems.
Material:Optical glass,Fused Silica or metal
Size:12.7-50.8mm
Size Tolerance:+0/-0.01~+0/-0.1mm
Thickness Tolerance:±0.01~±0.1mm
Focal Length Tolerance (%):±1%
Irregularity (P-V) @ 632.8nm:λ/4~2λ@632.8nm
Surface Quality:40/20~80/50
Off-Set Angle (°):90°
Clear Aperture:>90%
Bevel:Protective bevel as needed
Coating:Aluminum ,Silver,Gold
