Specification：
The cylindrical mirror has a flat back and a metal-coated spherical outer surface. These mirrors are suitable for applications in the ultraviolet, visible and infrared wavelength ranges.
Material:Optical glass,Fused Silica
Size:2-500mm
Size Tolerance:+0/-0.01~+0/-0.1mm
Thickness Tolerance:±0.01~±0.1mm
Focal Length Tolerance (%):±1%
Irregularity (P-V) @ 632.8nm:λ/10~λ/2@632.8nm
Surface Quality:10/5~60/40
Centration:<30”~3'
Clear Aperture:>90%
Bevel:Protective bevel as needed

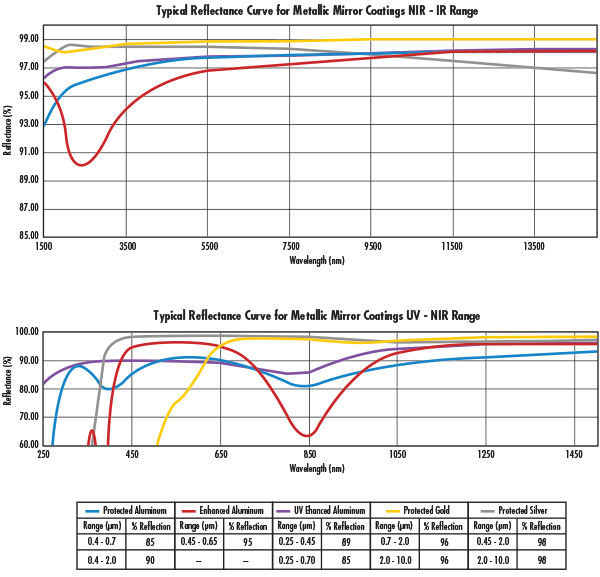

Coating:Aluminum ,Silver,Gold,Dielectric coating
